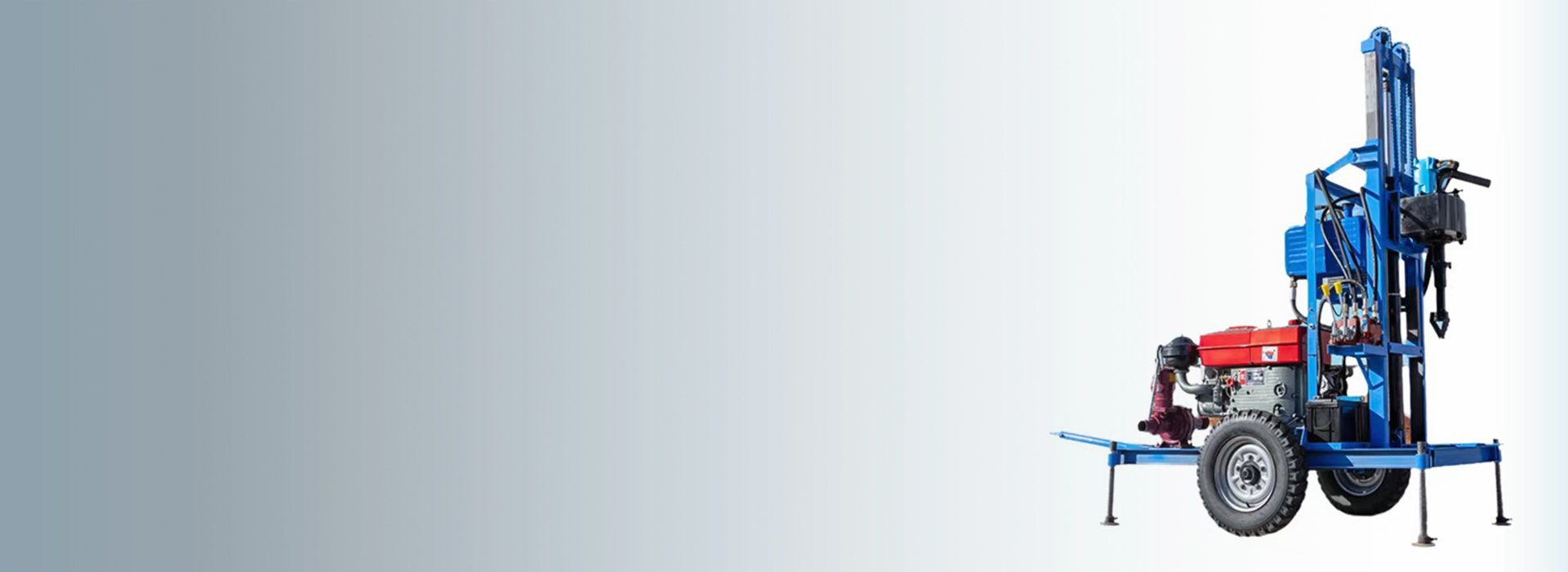

Portable Hydraulic Drilling Machine
Compared with traditional mechanically driven drilling rigs, our company has more advanced technological designs. This device offers advantages in power, efficiency, and adaptability.

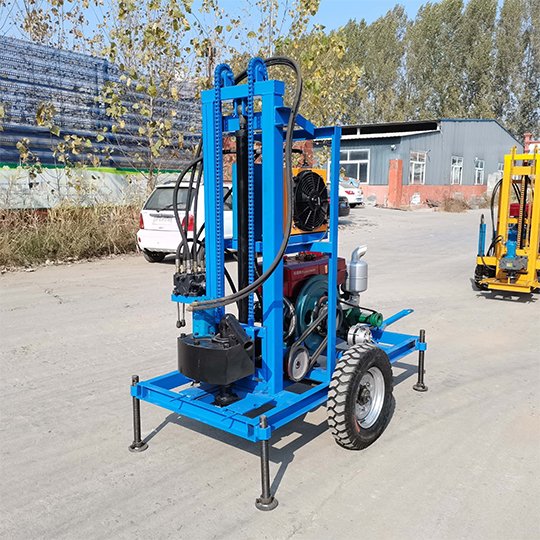

- A closed-loop hydraulic system ensures smooth power transmission.

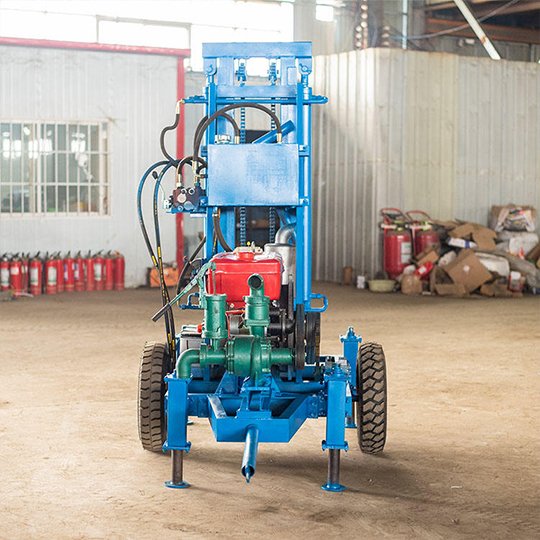

- Able to adapt to a variety of complex terrains, from soft soil to hard granite.

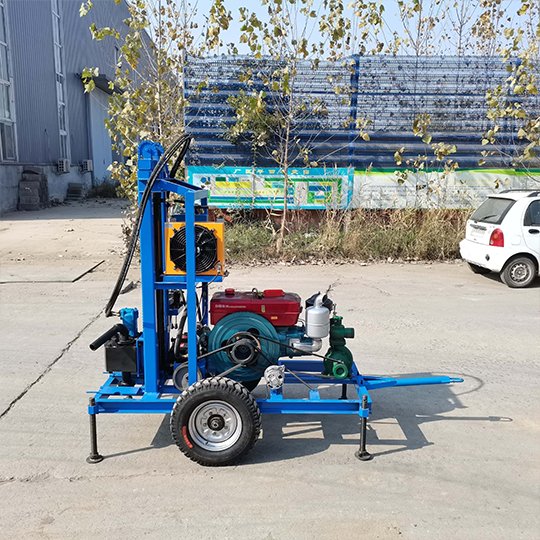

- Significantly improve drilling efficiency and protect drilling tools.

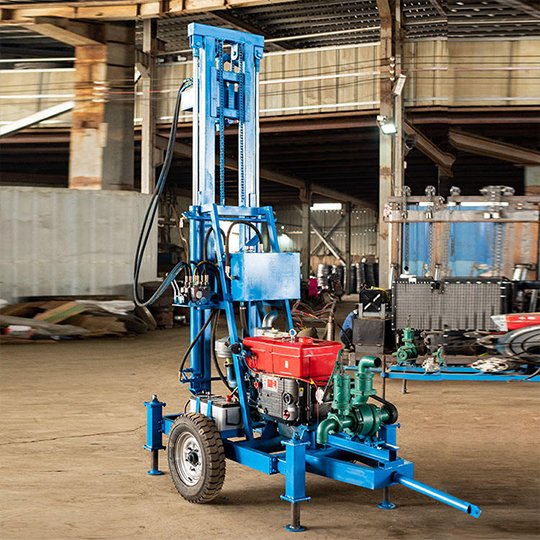

- Compact structure, small size, flexible, and maneuverable.
Your Trusted Portable Hydraulic Drilling Machine Supplier
As your trusted portable hydraulic drilling machine manufacturer, we are committed to creating highly adaptable machines that are widely used in rural drinking water, farmland irrigation, small emergency water supply, and other scenarios.
The hydraulic drive system combines high drilling efficiency with ease of operation, enabling it to meet common drilling requirements with ease.
The core components of the portable hydraulic drilling machine are made of durable materials and have undergone multiple rounds of rigorous testing to ensure stable performance.
Portable Hydraulic Drilling Machine By Features

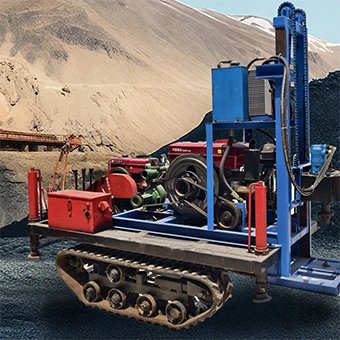

It has a hydraulic crawler chassis, strong mobility, and can quickly locate in complex sites. It is suitable for muddy farmland, rugged mountainous areas, etc.

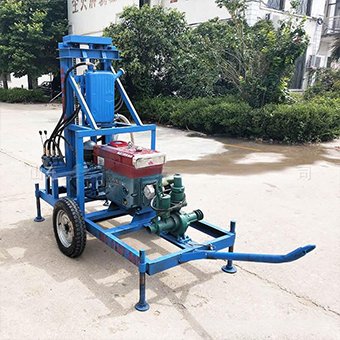

It adopts full hydraulic control, can achieve stepless speed regulation, and has a high degree of mechanization. It is suitable for agricultural irrigation wells, rural drinking water wells, construction site precipitation wells and other projects.
Compressed air creates negative pressure inside the drill pipe, sucking the mixture of cuttings and water out of the center hole of the drill pipe at high speed.It is suitable for large-diameter water wells, hydro geological exploration, and sand and gravel layer drilling.
A hydraulic motor drives a drill pipe with spiral blades, which rotate and cut the soil. This machine is primarily used for shallow well development in loose soils such as soft soil, clay, and sand, such as small-diameter wells in family gardens, irrigation wells for landscaping, and pile foundation holes.
It is a highly integrated well-drilling equipment suitable for rural and household safe drinking water projects, agricultural irrigation and drought resistance, municipal and landscaping projects.
Suitable for geothermal resource development or ultra-deep wells, specifically designed for high-temperature and deep well conditions, using high-temperature-resistant materials and reinforced structures.

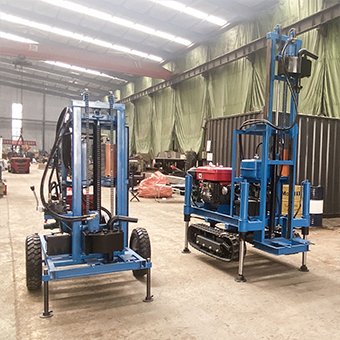

It is specially designed for breaking hard rock formations and is the most efficient choice for drilling deep water wells in mountainous and rocky areas.

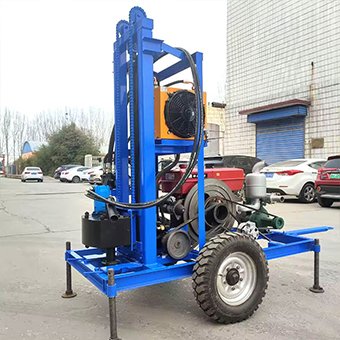

One machine has multiple functional designs, suitable for drilling operations from loose layers to rock layers.
Framework of Our Portable Hydraulic Drilling Machine
A portable hydraulic drilling machine mainly consists of a power system, a hydraulic transmission system, a drilling system, a circulating and flushing system, a control system, and a structural support system.
The portable hydraulic water well drilling rig’s power system primarily relies on a diesel generator, gasoline engine, or electric motor, a key component of the machine. Its working principle is to convert mechanical energy into hydraulic energy, and it can meet a variety of drilling needs.
This equipment has a hydraulic system, which is mainly composed of a hydraulic pump, a hydraulic motor and a hydraulic cylinder. The hydraulic system can accurately control the amount and pressure of the hydraulic oil.
The main components of this portable hydraulic drilling machine include the power head, drill rod, and drill bit, which can directly contact the underground soil and rocks, thereby quickly breaking up the underground soil and rocks to complete the drilling operation.
It uses a mud pump or air compressor to let water, mud and air into the borehole. This process can remove soil and gravel in the borehole and cool the drill bit, which is safe and efficient.
The hydraulic valve group and the driller control box are key components of the control system, which can ensure the efficient and accurate operation of each part of the drilling.
The drill frame and chassis together form the frame of the equipment, making the entire machine strong and stable.

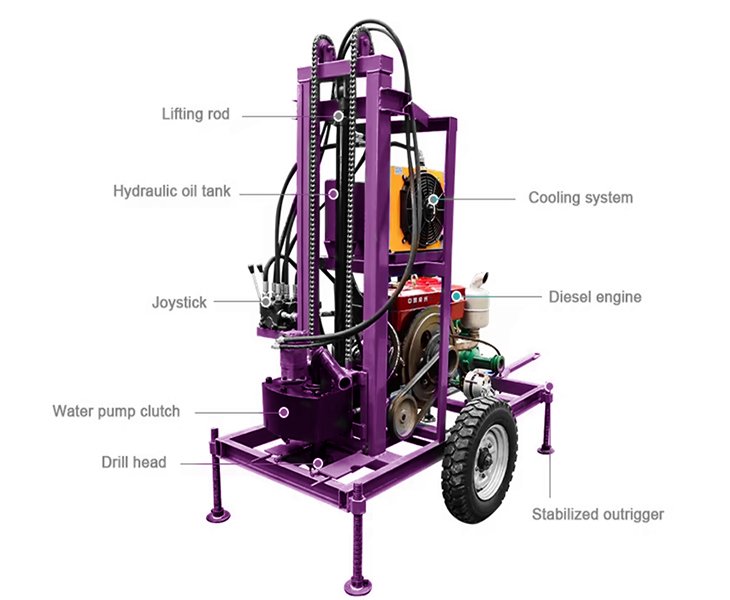

Portable Hydraulic Drilling Machine Hydraulic Motor
The Portable Hydraulic Drilling Machine Hydraulic Motor relies on a hydraulic pump to drive the drill rod and drill bit, ultimately breaking up soil and rock. Portable water well drills equipped with hydraulic motors have significantly improved drilling efficiency, reaching 3-5 times the efficiency of traditional manual drilling tools and offering ease of operation. Only a minimal amount of water is required to cool the drill bit during drilling, conserving water resources and reducing soil pollution.

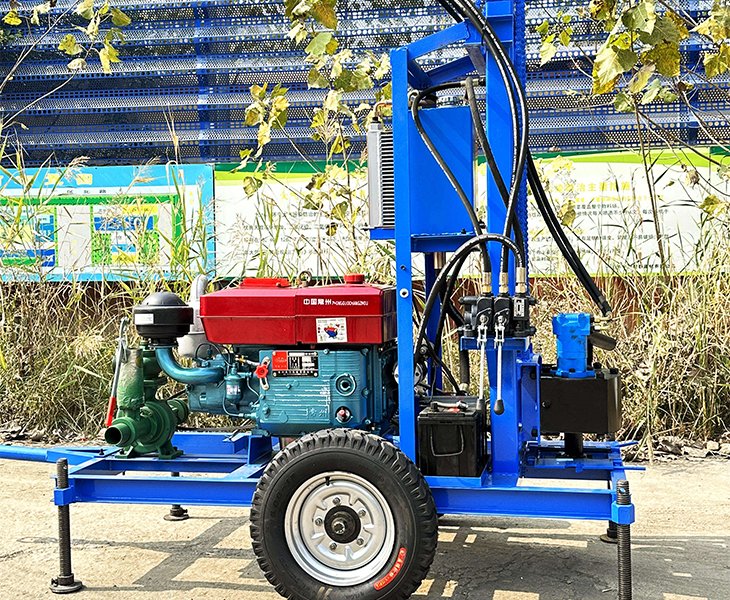

Portable Hydraulic Drilling Machine Drill Pipe
The drill pipe of the portable hydraulic drilling machine is made of high-strength lightweight alloy steel. Its production process is to first heat it and then cool it quickly, then keep it warm and cool it slowly. The tensile strength can reach 500-600MPa. Therefore, the material has strong toughness. The surface of the drill pipe is made of aluminum alloy or alloy steel, which has high wear resistance and corrosion resistance, ensuring the service life of the product.
Guide to Procuring Portable Hydraulic Drilling Machine
When choosing a portable hydraulic drilling machine, first understand the equipment’s usage scenarios and requirements, such as the drilling depth, borehole diameter, and geological conditions (soil, soft rock, or mixed formations).
After determining the specific operating requirements of the portable hydraulic drilling machine, you can communicate with the supplier to confirm the specific configuration of the selected product.For example, drilling technology (auger, down-the-hole hammer, mud circulation).
When ordering a portable hydraulic drilling machine, a thorough inspection is essential during the acceptance process. First, verify that the core performance parameters meet your requirements. Second, confirm the after-sales service terms and accessories included in the technical agreement.

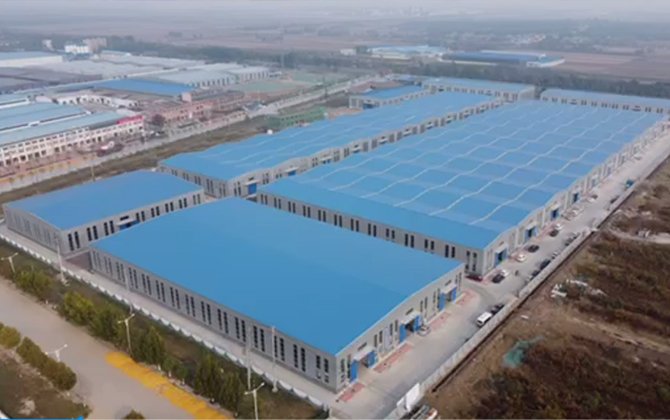

Company Advantage
As a professional manufacturer of portable water well drilling rigs, our company boasts leading lightweight structural designs, efficient hydraulic micro-drive technology, and user-friendly intelligent control systems. We meet the needs of farmers and small-scale operators for rural water well drilling and small-scale agricultural irrigation. Our portable water well drilling rigs integrate a compact and efficient power system, a lightweight integrated hydraulic drive module, and a one-touch simple control box. Featuring a lightweight modular design, fully hydraulic precision drive, and a quick assembly and disassembly structure, they enable quick, single-person assembly and stable, efficient shallow-hole drilling.
Your Trusted Portable Hydraulic Drilling Machine Manufacturer in China
As a manufacturer of portable hydraulic drilling machine, we offer customized pre-sales services tailored to meet diverse needs, including rural drinking water, emergency relief, and field exploration. We tailor the appropriate drilling tools and adjust hydraulic system parameters based on the terrain (mountainous/hilly/remote rural areas), water quality, and depth. During sales, we provide remote guidance, allowing customers to quickly master installation methods. After-sales service promptly resolves any operational issues.
Choosing the right portable hydraulic drilling machine is a very important step. Choosing the right product can make your construction more efficient, and you need to consider many aspects.
The engine is a key component of a portable hydraulic drilling machine. Difficulty starting the engine can cause the portable hydraulic water well drill to stop operating. Possible causes include low battery, low oil levels, contaminated oil, and clogged nozzles. How can we solve this problem? You need to charge the battery promptly, maintain adequate oil levels, keep the fuel injectors clean, and clean and replace the injectors regularly.
Stuck drill bits with portable hydraulic water well drills are more complex and may be caused by improper operation. It is related to drilling speed, drill pipe connections, and mud mix.
Compared with other products, what are the advantages of our products and why will you choose us? In order to let you know more about our product advantages, the following will introduce in detail the characteristics of our small hydraulic water well drilling rig in terms of design and manufacturing.
If this is your first time using this type of product, you might be worried that it might be difficult to operate. However, you can be assured that our products are designed to be easy to use, so even a novice can quickly master their operation.
